Scan2Mesh: From Unstructured Range Scans to 3D Meshes
1Stanford University 2Technical University of Munich
Proc. Computer Vision and Pattern Recognition (CVPR), IEEE, June 2019

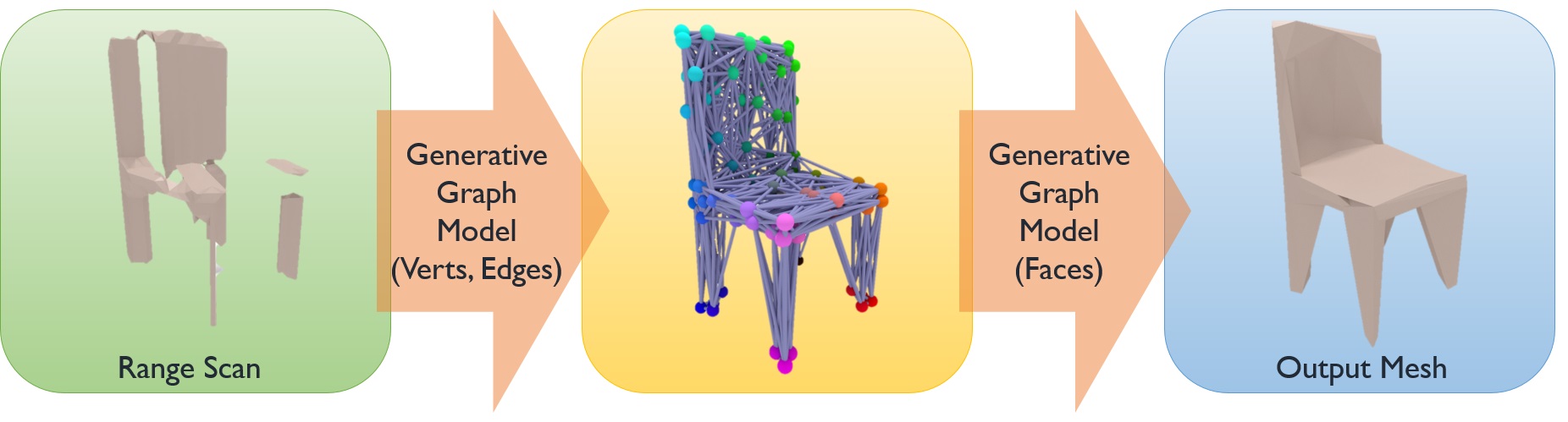

We introduce Scan2Mesh, a novel data-driven generative approach which transforms an unstructured and potentially incomplete range scan into a structured 3D mesh representation. The main contribution of this work is a generative neural network architecture whose input is a range scan of a 3D object and whose output is an indexed face set conditioned on the input scan. In order to generate a 3D mesh as a set of vertices and face indices, the generative model builds on a series of proxy losses for vertices, edges, and faces. At each stage, we realize a one-to-one discrete mapping between the predicted and ground truth data points with a combination of convolutional- and graph neural network architectures. This enables our algorithm to predict a compact mesh representation similar to those created through manual artist effort using 3D modeling software. Our generated mesh results thus produce sharper, cleaner meshes with a fundamentally different structure from those generated through implicit functions, a first step in bridging the gap towards artist-created CAD models.
